EMC測試天線

  • Read More

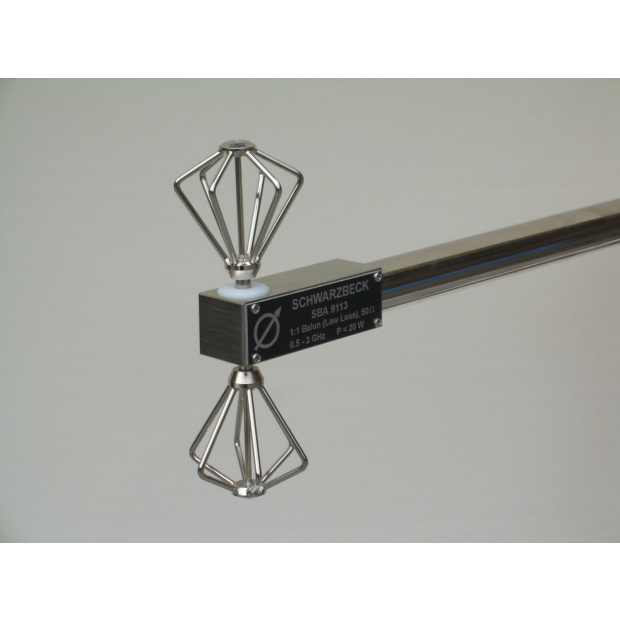

    SBA9112; SBA9113; SBA9119

    廠牌:Schwarzbeck
    型號:SBA9112 ; SBA9113; SBA9119
  • Read More
    pod-450px 2.png

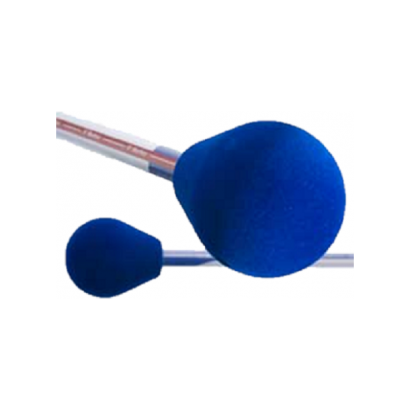

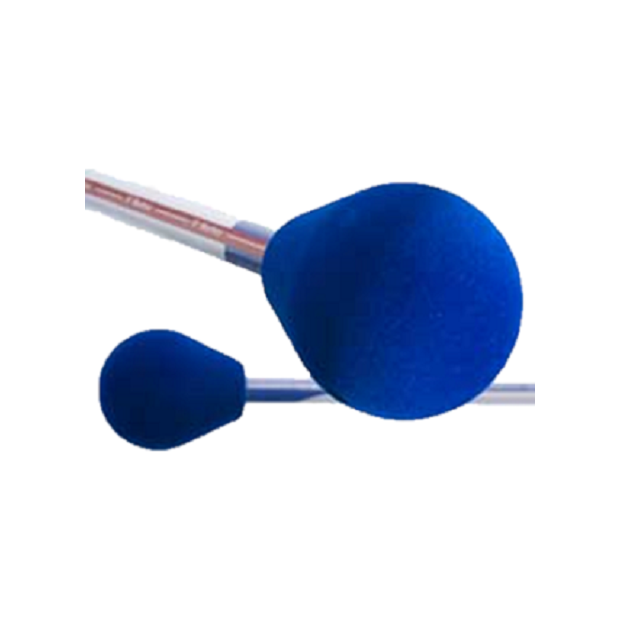

    POD Antenna

    廠牌:Seibersdorf
    型號:POD16 & POD618
  • Read More

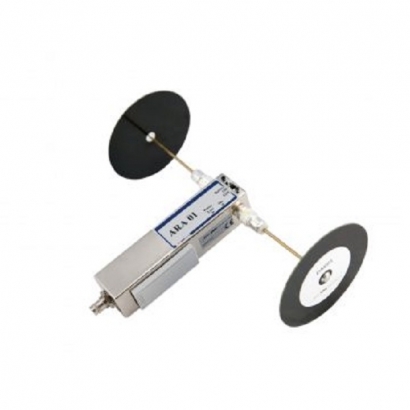

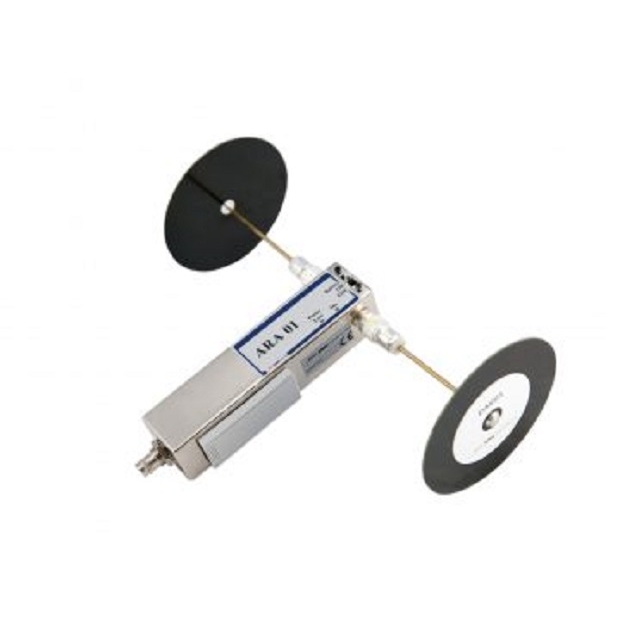

    ARA01

    廠牌:Eurofins York
    型號:ARA01
  • Read More

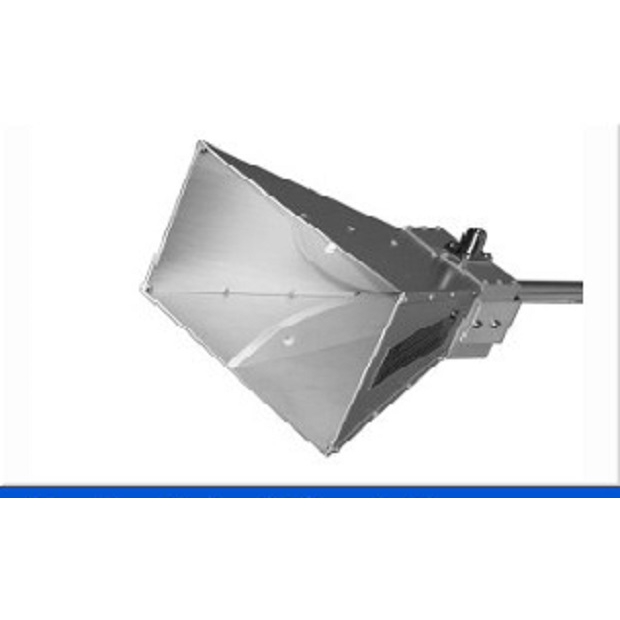

    Double-Ridged Horn Antennas--620.jpg

    各式Horn antenna

    Broadband Horn Antennas


    BBHA 9120 A
    Broad-Band Horn Antenna (0.8) 1 – 5 (10) GHz, N-connector


    BBHA 9120 B
    Broad-Band Horn Antenna 1 – 10 GHz, N-connector


    BBHA 9120 C
    Broad-Band Horn Antenna 2 – 18 (20) GHz, SMA-connector


    BBHA 9120 D
    Broad-Band Horn Antenna (0,8) 1 – 18 GHz, N-connector


    BBHA 9120 E
    Broad-Band Horn Antenna 0.5 – 6 GHz, N-connector


    BBHA 9120 F-N
    Broad-Band Horn Antenna 0.2 – 2 GHz, N-connector


    BBHA 9120 F-7/16
    Broad-Band Horn Antenna 0.2 – 2 GHz, 7/16-connector


    BBHA 9120 G
    Broad-Band Horn Antenna 0.4 – 2.8 GHz, 7/16-connector


    BBHA 9120 J
    Broadband horn antenna optimized for the gain in 1 m distance from 800 MHz to 6.2 GHz. Especially optimized for automotive immunity.  Power limited by the N‑connector. The N-connector can withstand ca. 400 Watt at 4 GHz.


    BBHA 9120 LF
    Broad-Band Horn Antenna 0.7 – 6 GHz, N-connector


    BBHA 9170
    Broad-Band Horn Antenna 15 – 26.5 (40) GHz, SMA-compatible connector


    HA 9250-12
    Pyramidal standard gain horn Antenna, 1-2 GHz, 7/16-connector, 20 dBi, optimized for far field gain.


    HA 9250-24
    Pyramidal standard gain horn Antenna, 2 – 4 GHz, 7/16-connector, 20 dBi, optimized for far field gain.


    HA 9250-48
    Pyramidal standard gain horn Antenna, 4 – 8 GHz, 7/16-connector, 22mm-tube, 20 dBi, optimized for far field gain. (Alternative fixture available: 3/8’’-thread and M10 thread in center of gravity replaces 22mm-tube, alternative connector available: N replaces 7/16)


    HA 9251-12
    Pyramidal standard gain horn Antenna, 1-2 GHz, 7/16-connector, far field gain 19-22 dBi, optimized for 1 m gain.


    HA 9251-24
    Pyramidal standard gain horn Antenna, 2 – 4 GHz, 7/16-connector, 18 dBi, optimized for the gain in 1 m distance.


    HA 9251-48
    Pyramidal standard gain horn Antenna, 4 – 8 GHz, 7/16-connector, 22mm-tube, 19 dBi, optimized for the gain in 1 m distance.


    HWRD750
    Double ridged horn antenna 7.5-18 GHz with waveguide flange WRD750.
    Gain 16-21 dBi, 1 kW, especially to generate very high field strengths.


    Dual polarised horn antennas


    CTIA 0710
    CTIA horn antenna, dual polarized, 0,7-10 GHz, typ. 30 dB cross polar rejection, antenna with reduced size for OTA measurements. Antenna without 22 mm tube!


    Opt. CTIA tube 22 mm
    Option for CTIA 0710: 22 mm tube with indexing ring.


    BBHX 9120 E
    Dual polarized Broad-Band Horn Antenna 0.4 – 10 GHz, N-connectors


    BBHX 9120 LF
    Dual polarized Broad-Band Horn Antenna (0.8) 1 – 8 (10.5) GHz, N-connectors.
  • Read More

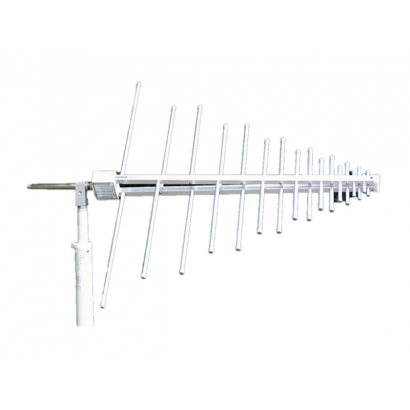

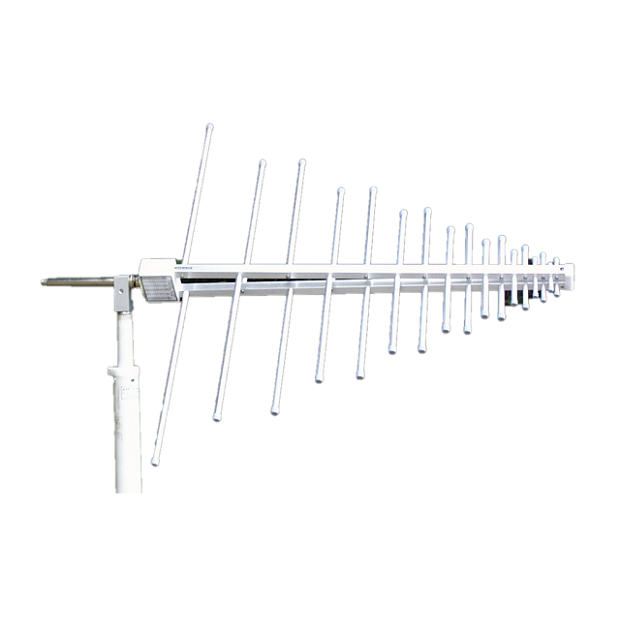

    各式LPDA天線

    Logarithmic Periodic Broadband Antennas



    UHALP 9108 A
    Log.-Periodic Antenna, alum. Tubing, 250 – 2400 MHz, low loss, 1 kW power


    VUSLP 9111-1000
    Log.-Per. Antenna, aluminium tubing, 1000 – 3000 (4000) MHz, low loss, 1 kW.



    VUSLP 9111-400
    Log.-Periodic Antenna, alum. Tubing, 400 - 3000 (4000) MHz, low loss, 1 kW.



    VUSLP 9111
    Log.-Periodic Antenna, alum. Tubing, 200 – 2300 (4000) MHz, low loss, 1 kW power



    VUSLP 9111 B
    Log.-Periodic Antenna, alum. Tubing, (180) 200 - 3000 (4000) MHz, low loss,
    1 kW power



    VUSLP 9111 E
    Log.-Per. Antenna, aluminium tubing, 1 kW power, 70 (65)-3000 (4000) MHz. Recommended adapter: KG 9201. EN 61000-4-3



    VULP 9118 A
    Log.-Per. Antenna, aluminium tubing, 1 kW power, 180 -1500 (2000) MHz



    VULP 9118 B
    Log.-Per. Antenna, aluminium tubing, 1 kW power, 160-1500 (2000) MHz



    VULP 9118 C
    Log.-Per. Antenna, aluminium tubing, 1 kW power, 100-1400 (2000) MHz



    VULP 9118 C special
    Log.-Per. Antenna, aluminium tubing, 1 kW power, 100-1400 (2000) MHz.
    Nearly identical gain as VULP 9118 C but with reduced width.  Special=folded longest elements.



    VULP 9118 D
    Log.-Per. Antenna, aluminium tubing, 1 kW power, (80) 95 -1500 (1800) MHz



    VULP 9118 D special
    Log.-Per. Antenna, aluminium tubing, 1 kW power, (80) 95 -1500 (1800) MHz. Nearly identical gain as VULP 9118 D but with reduced width.
    Special = folded longest elements.



    VULP 9118 D HP
    Log.-Per. Antenna, aluminium tubing,  high power with 7/16.-connector,
    (80) 95 -1500 (1800) MHz



    VULP 9118 D HP sp
    Log.-Per. Antenna, aluminium tubing,  high power with 7/16.-connector,
    (80) 95 -1500 (1800) MHz, nearly identical gain as VULP 9118 E High Power but with reduced width.  Special = folded longest elements.



    VULP 9118 E
    Log.-Per. Antenna, aluminium tubing, 1 kW power, 75 (50)-1500 MHz.



    VULP 9118 E special
    Log.-Per. Antenna, aluminium tubing, 1 kW power, 75 (50)-1500 MHz. Nearly identical gain as VULP 9118 E but with reduced width.
    Special=folded longest elements.



    VULP 9118 E High Power
    Log.-Per. Antenna, aluminium tubing, high power, 7/16-connector,
    75 (50)-1500 MHz.



    VULP 9118 E HP sp
    Log.-Per. Antenna, aluminium tubing, high power, 7/16-connector,
    75 (50)-1500 MHz. Nearly identical gain as VULP 9118 E HP but with reduced width. Special=folded longest elements.



    VULP 9118 F
    Log.-Per. Antenna, al. tubing, end discs, 1 kW power, 55 -1800 MHz



    VULP 9118 G
    Log.-Per. Antenna, al. tubing, end discs, 1 kW power, 45 -1500 MHz



    VULP 9118 G special
    Log.-Per. Antenna, al. tubing, end discs, 1 kW power, 45 -1500 MHz. Nearly identical gain as VULP 9118 G but with reduced width.
    Special=folded longest elements.



    VULP 9118 H
    Log.-Per. Antenna, aluminium tubing, 1 kW power, (26) 30 - 1500 (1800) MHz, N‑connector gain 6 dBi, VSWR<3, width 5.2 m, length 4.8 m, weight 35 kg.



    Opt. WP
    Option: grey coating and sealing for outdoor use



    USLP 9142
    UHF – SHF Log. – Per. Antenna, 0.7 – 5 (8) GHz



    USLP 9143
    UHF – SHF Log. – Per. Antenna, (0.25) 0.3 – 7 (8) GHz



    USLP 9143 B
    UHF – SHF Log. – Per. Antenna, (0.18) 0.2 – 7 (8) GHz



    ESLP 9145
    UHF – EHF Log. – Per. Antenna, (0.7) 1- 18 (20) GHz, N-connector



    XSLP 9142
    Dual Polarized UHF-SHF Log.-Per. Antenna, 800 MHz – 3(5) GHz, 50 W



    XSLP 9143
    Dual Polarized UHF-SHF Log.-Per. Antenna, 300 MHz – 3(5.5) GHz, 50 W
