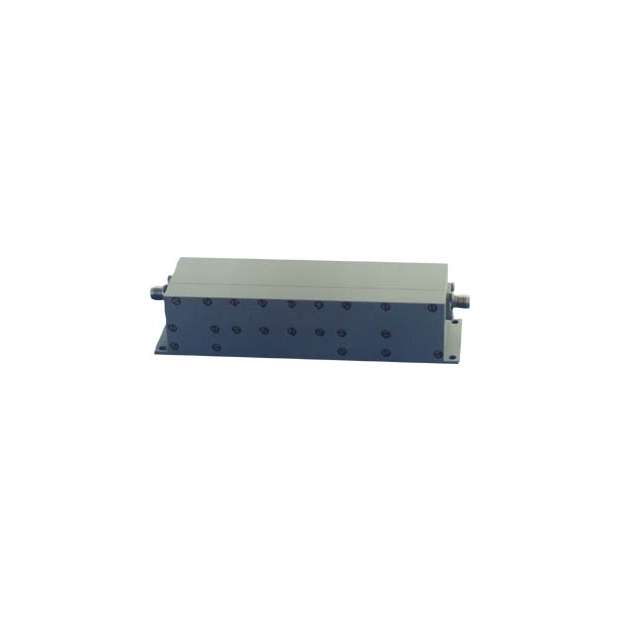

Combine Bandpass filter

Combine Bandpass filter

Combine Bandpass filter

  • Combline.jpg
詳細介紹
Passband (GHz) Loss(dB) VSWR Rejection(dB) Stopband (GHz) Size (inches)
2.0 to 4.0 1.0 1.5:1 60 0 to 1.10
4.90 to 12.0
3.80 x 1.00 x 0.80
2.0 to 6.0 1.5 2.0:1 60 0 to 1.50
6.90 to 18.0
2.75 x 0.70 x 0.50
4.0 to 5.0 1.0 1.5:1 60 0 to 3.00
6.00 to 18.0
2.20 x 0.65 x 0.70
4.0 to 8.0 1.0 1.5:1 60 0 to 2.20
9.80 to 22.0
3.00 x 0.80 x 0.65
6.0 to 10.0 1.0 1.5:1 60 0 to 5.10
11.0 to 22.0
2.72 x 0.60 x 0.5
8.0 to 10.0 1.0 1.5:1 60 0 to 7.00
11.0 to 26.5
2.40 x 0.63 x 0.5
8.0 to 12.0 1.0 1.5:1 50 0 to 7.00
12.80 to 26.5
2.58 x 0.65 x 0.5
8.0 to 16.0 1.2 1.8:1 60 0 to 4.40
19.6 to 26.5
1.55 x 0.63 x 0.5
8.0 to 18.0 1.3 2.0:1 50 0 to 6.2
19.3 to 26.5
1.73 x 0.62 x 0.52
10.0 to 14.0 1.0 1.5:1 60 0 to 8.50
15.0 to 26.5
2.30 x 0.65 x 0.5
10.0 to 15.0 1.0 1.5:1 50 0 to 8.00
16.2 to 26.5
2.01 x 1.63 x 0.5
12.0 to 18.0 1.0 1.6:1 50 0 to 10.5
19.0 to 26.5
2.18 x 0.60 x 0.5
14.0 to 18.0 1.0 1.6:1 60 0 to 12.00
19.0 to 26.5
1.90 x 0.60 x 0.50
18.0 to 26.5 1.5 2.0:1 50 0 to 14.00
32.0 to 40.0
1.08 x .50 x .50
