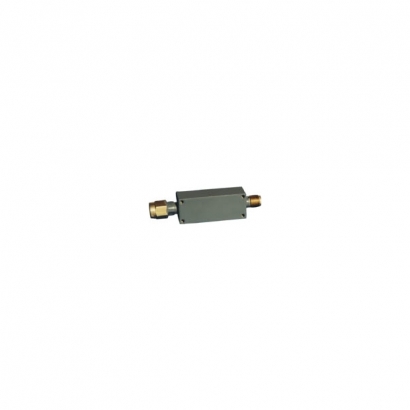

Low Pass Filter

Low Pass filter

Low Pass filter

  • Lowpass_sm.jpg
詳細介紹
Passband (MHz) Loss(dB) VSWR Rejection
(dB)
Stop band
(MHz)
Size (inches)
0 to 18.0 3.0 1.5:1 50 19.1 to 100 3.00 x 1.00 x .75
0 to 230 1.0 1.5:1 50 310 to 1000 1.75 x 0.50 x0.40
0 to 425 0.8 1.5:1 35 500 to 3000 1.50 x 0.38 x0.38
0 to 800 2.0 1.5:1 60 875 to 10000 2.5 x 0.38 x 0.38
0 to 1000 1.0 1.5:1 60 1500 to 5000 2.25 x 0.38 x0.38
0 to 4400 0.5 1.5:1 20 7200 to 18000 0.75 x 0.50 x0.50
0 to 6000 1.0 2.0:1 60 6900 to 18000 1.50 x 0.70 x0.50
0 to 8000 1.0 1.7:1 50 9000 to 18000 1.48 x 0.70 x0.50
0 to 4600 1.5 2.0:1 55 5150 to 16000 2.00 x 0.99 x0.50
0 to 18000 1.2 1.8:1 40
50
19300 to 19800
19800 to 20400
.66 x 0.55 x0.50
0 to 18000 1.4 1.8:1 40
50
19300 to 19800
19800 to 20400
.80 x 0.70 x0.70
0 to 18000 3.4 2.0:1 80 19300 to 20400 1.3 x 0.55 x 0.5
0 to 18000 3.6 2.0:1 80 19300 to 20400 1.45 x 0.7 x 0.7
