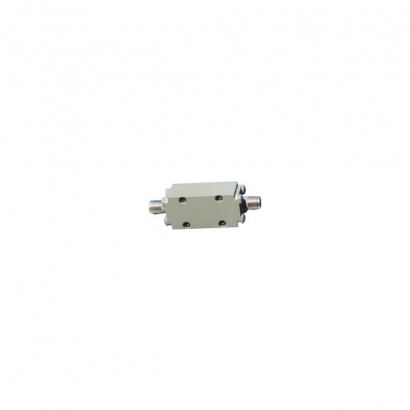

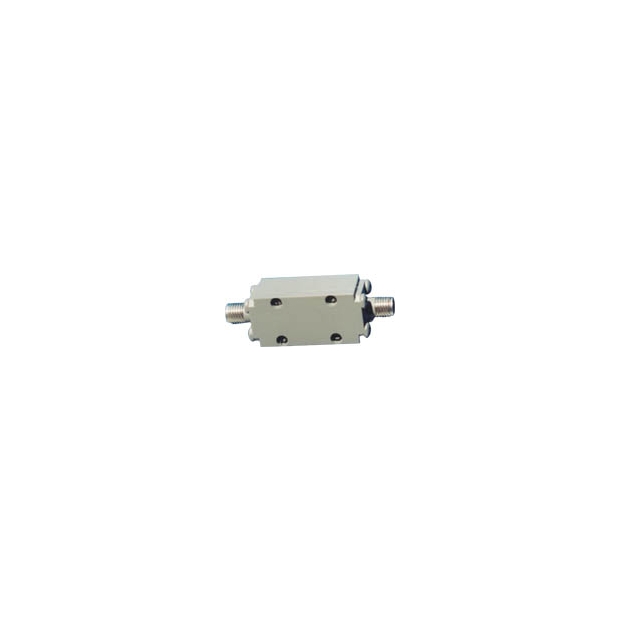

Miniature Bandpass filter

Miniature Bandpass filter

Miniature Bandpass filter

  • Highpass_sm.jpg
詳細介紹
Passband (MHz) Loss(dB) VSWR Rejection(dB) Stopband (MHz) Size (inches)
25 to 35 1.8 1.5:1 40 0 to 10
110 to 500
1.50 x 0.50 x 0.40
60 to 80 2.0 1.5:1 50 0 to 40
110 to 500
1.50 x 0.50 x 0.40
225 to 400 1.5 1.5:1 50 0 to 175
475 to 2000
2.0 x 0.50 x 0.40
500 to 2000 1.5 1.7:1 50 0 to 400
2500 to 8000
2.0 x 0.50 x 0.40
950 to 1700 1.2 1.5:1 40 0 to 700
2000 to 6000
2.25 x 0.38 x 0.38
1000 to 2000 1.0 1.5:1 60 0 to 500
3000 to 18000
2.50 x 0.63 x 0.49
