射頻濾波器RF Filter

  • Read More

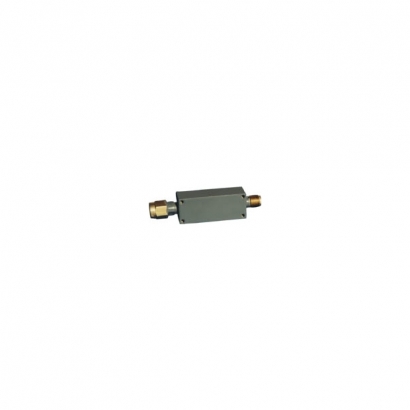

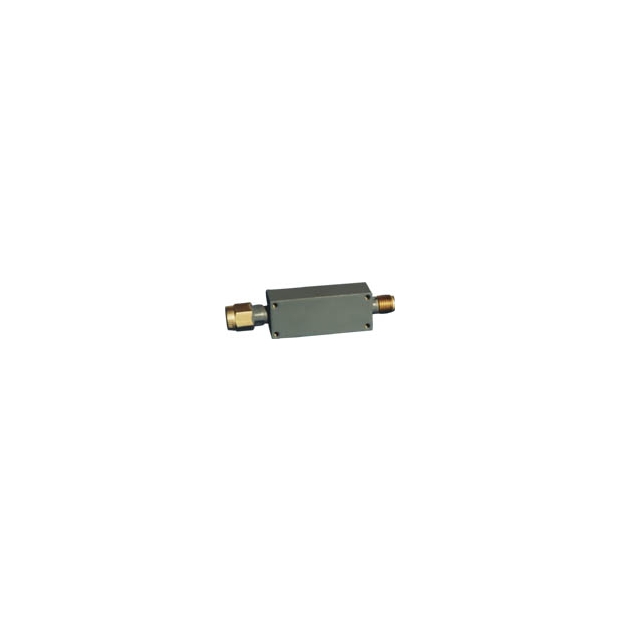

    Combine Bandpass filter

    Passband (GHz)
    Loss(dB)
    VSWR
    Rejection(dB)
    Stopband (GHz)
    Size (inches)


    2.0 to 4.0
    1.0
    1.5:1
    60
    0 to 1.10
    4.90 to 12.0
    3.80 x 1.00 x 0.80


    2.0 to 6.0
    1.5
    2.0:1
    60
    0 to 1.50
    6.90 to 18.0
    2.75 x 0.70 x 0.50


    4.0 to 5.0
    1.0
    1.5:1
    60
    0 to 3.00
    6.00 to 18.0
    2.20 x 0.65 x 0.70


    4.0 to 8.0
    1.0
    1.5:1
    60
    0 to 2.20
    9.80 to 22.0
    3.00 x 0.80 x 0.65


    6.0 to 10.0
    1.0
    1.5:1
    60
    0 to 5.10
    11.0 to 22.0
    2.72 x 0.60 x 0.5


    8.0 to 10.0
    1.0
    1.5:1
    60
    0 to 7.00
    11.0 to 26.5
    2.40 x 0.63 x 0.5


    8.0 to 12.0
    1.0
    1.5:1
    50
    0 to 7.00
    12.80 to 26.5
    2.58 x 0.65 x 0.5


    8.0 to 16.0
    1.2
    1.8:1
    60
    0 to 4.40
    19.6 to 26.5
    1.55 x 0.63 x 0.5


    8.0 to 18.0
    1.3
    2.0:1
    50
    0 to 6.2
    19.3 to 26.5
    1.73 x 0.62 x 0.52


    10.0 to 14.0
    1.0
    1.5:1
    60
    0 to 8.50
    15.0 to 26.5
    2.30 x 0.65 x 0.5


    10.0 to 15.0
    1.0
    1.5:1
    50
    0 to 8.00
    16.2 to 26.5
    2.01 x 1.63 x 0.5


    12.0 to 18.0
    1.0
    1.6:1
    50
    0 to 10.5
    19.0 to 26.5
    2.18 x 0.60 x 0.5


    14.0 to 18.0
    1.0
    1.6:1
    60
    0 to 12.00
    19.0 to 26.5
    1.90 x 0.60 x 0.50


    18.0 to 26.5
    1.5
    2.0:1
    50
    0 to 14.00
    32.0 to 40.0
    1.08 x .50 x .50
  • Read More

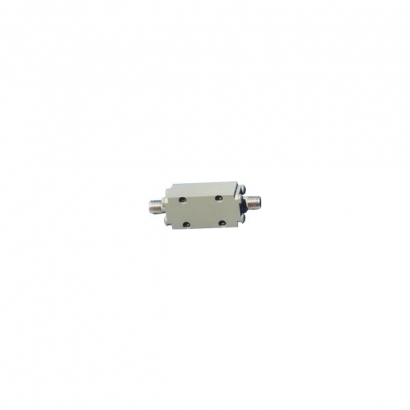

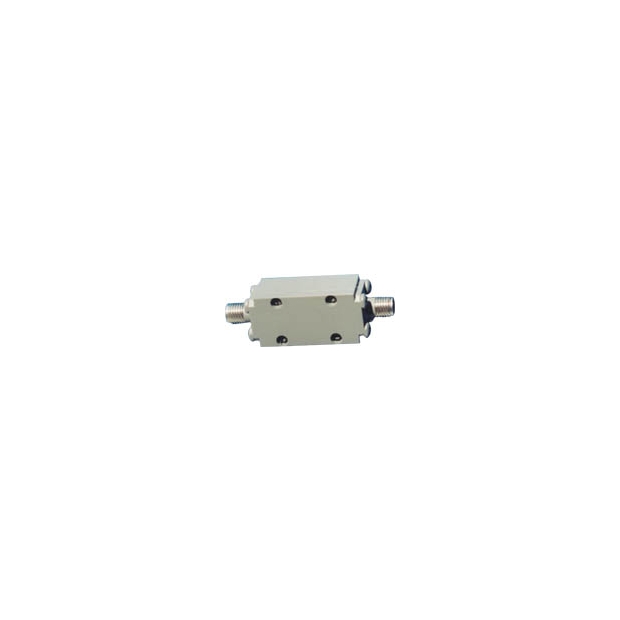

    Band Reject (Notch) Filter

    Passbands
    (MHz)
    Loss(dB)
    VSWR
    Rejection
    (dB)
    Stopband
    (MHz)
    Size
    (inches)


    0 to 2170, 3000 to12000
    see pdf data sheet
    2.0:1
    50
    2400 to 2500
    1.0 x 0.98 x 0.51


    0 to 2170, 3000 to 18000
    2.0
    2.0:1
    50
    2400 to 2500
    1.0 x 0.98 x 0.51


    0 to 4950, 5550 to 11000
    2.0
    1.7:1
    45
    5150 to 5350
    3.48 x 0.87 x 0.53


    0 to 5250, 5950 to 12000
    2.0
    1.7:1
    45
    5470 to 5725
    3.33 x 0.87 x 0.54


    0 to 5550, 6050 to 12000
    2.0
    1.7:1
    45
    5725 to 5875
    3.28 x 0.87 x
    0.53


    0 to 550, 1300 to 6000
    1.5
    2.0:1
    50
    800 to 1000
    1.0 x 0.98 x 0.51


    0 to 1250, 2600 to 9000
    1.5
    2.0:1
    50
    1800 to 2000
    1.0 x 0.98 x 0.51


    0 to 3200, 3800 to 9000
    1.5
    2.0:1
    45
    3400 to 3600
    4.50 x 0.99 x 0.70


    0 to 2000, 3200 to 18000
    1.5
    2.0:1
    50
    2495 to 2690
    1.0 x 0.98 x 0.51


    0 to 1900, 3000 to 18000
    1.5
    2.0:1
    50
    2300 to 2400
    1.0 x 0.98 x 0.51


    0 to 2800, 4400 to 18000
    1.5
    2.0:1
    40
    3400 to 3800
    1.25 x 0.48 x 0.40


    750 to 1500, 1650 to 2500
    1.0
    1.5:1
    50
    1573.92 to 1576.92
    4.70 x 2.30 x 1.20


    0 to 1260, 2240 to 9000
    1.5
    2.0:1
    45
    1710 to 1785
    1.00 x 0.98 x 0.51


    0 to 1600, 2160 to 9000
    1.5
    2.0:1
    40
    1850 to 1970
    1.00 x 0.98 x 0.51


    0 to 1770, 2130 to 9000
    1.5
    2.0:1
    30
    1922 to 1978
    1.00 x 0.98 x 0.51


    0 to 4550, 6400 to 18000
    1.5
    2.0:1
    40
    5150 to 5880
    1.25 x 0.48 x 0.40


    0 to 800, 875 to 2000
    1.5
    1.5:1
    50
    825 to 850
    7.80 x 2.25 x 2.50


    0 to 850, 940 to 2000
    1.5
    1.5:1
    50
    880 to 915
    7.80 x 2.25 x 2.50


    0 to 1660, 1835 to 4000
    1.5
    1.5:1
    50
    1710 to 1785
    10.0 x 1.60 x 1.14


    0 to 1800, 1960 to 3500
    1.5
    1.5:1
    50
    1850 to 1910
    9.53 x 1.65 x 1.14


    0 to 1870, 2030 to 4200
    1.5
    1.5:1
    50
    1920 to 1980
    9.53 x 1.65 x 1.14


    0 to 880, 950 to 1500
    1.5
    1.5:1
    50
    902 to 928
    7.80 x 2.25 x 2.50


    0 to 2000,  2400 to 18000
    2.0
    2.0:1
    40
    2110 to 2170
    1.0 x 0.98 x 0.51
  • Read More

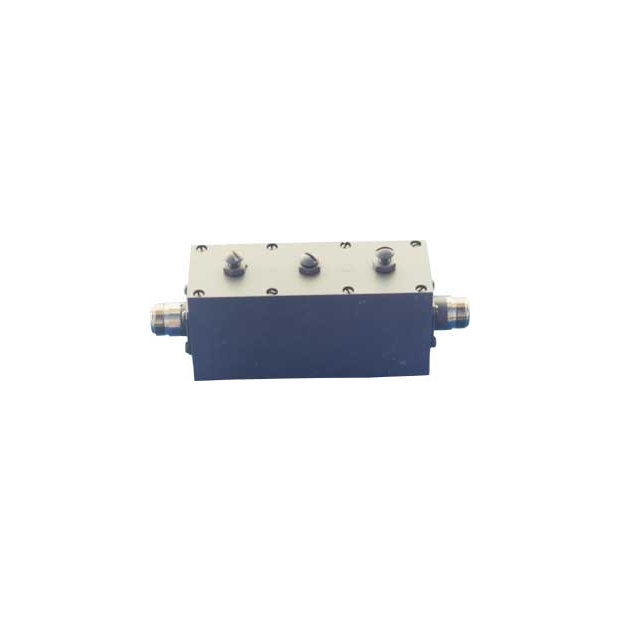

    Miniature Bandpass filter

    Passband (MHz)
    Loss(dB)
    VSWR
    Rejection(dB)
    Stopband (MHz)
    Size (inches)


    25 to 35
    1.8
    1.5:1
    40
    0 to 10
    110 to 500
    1.50 x 0.50 x 0.40


    60 to 80
    2.0
    1.5:1
    50
    0 to 40
    110 to 500
    1.50 x 0.50 x 0.40


    225 to 400
    1.5
    1.5:1
    50
    0 to 175
    475 to 2000
    2.0 x 0.50 x 0.40


    500 to 2000
    1.5
    1.7:1
    50
    0 to 400
    2500 to 8000
    2.0 x 0.50 x 0.40


    950 to 1700
    1.2
    1.5:1
    40
    0 to 700
    2000 to 6000
    2.25 x 0.38 x 0.38


    1000 to 2000
    1.0
    1.5:1
    60
    0 to 500
    3000 to 18000
    2.50 x 0.63 x 0.49
  • Read More

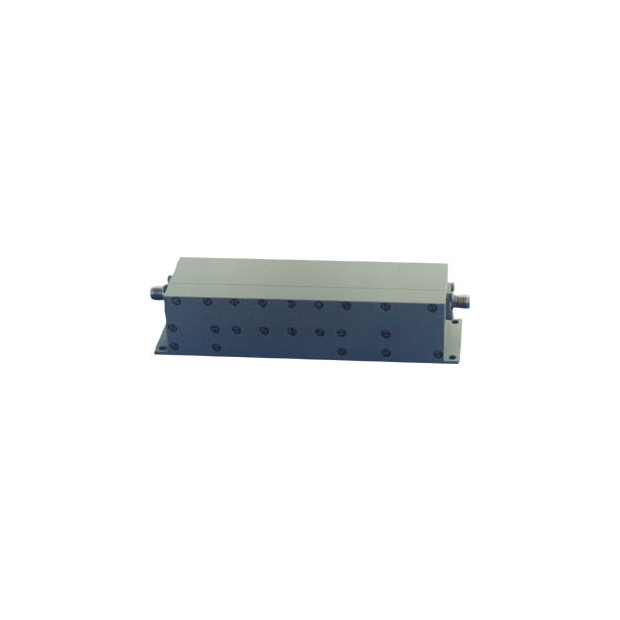

    High Pass filter

    Passband
    (MHz)
    Loss(dB)
    VSWR
    Rejection
    (dB)
    Stopband
    (MHz)
    Size
    (inches)


    100 to 500
    1.0
    1.5:1
    60
    0 to 80
    1.50 x 0.50×0.40


    500 to 2000
    1.0
    1.5:1
    60
    0 to 425
    1.25 x 0.50 x0.40


    1000 to 15000
    1.0
    2.0:1
    60
    0 to 100
    0.50 x 0.75 x0.50


    1000 to 18000
    2.5
    2.0:1
    60
    0 to 800
    1.25 x 0.48 x0.40


    1200 to 18000
    2.5
    2.0:1
    60
    0 to 1000
    1.25 x 0.48 x0.40


    1500 to 18000
    1.5
    2.0:1
    50
    0 to 1000
    1.25 x 0.48 x0.40


    1800 to 13000
    1.5
    2.0:1
    60
    0 to 900
    1.10 x 0.60 x0.50


    2000 to 8000
    1.0
    1.7:1
    60
    0 to 1500
    1.10 x 0.6 x 0.50


    2500 to 18000
    1.5
    2.0:1
    50
    0 to 2000
    1.25 x 0.48 x0.40


    2800 to 18000
    2.5
    2.0:1
    60
    0 to 2500
    1.25 x 0.48 x0.40


    2900 to 18000
    2.8
    2.0:1
    45
    0 to 2700
    1.25 x 0.48 x0.40


    3000 to 18000
    2.5
    2.0:1
    50
    0 to 2700
    1.20 x 0.50 x0.50


    4000 to 18000
    1.5
    2.0:1
    50
    0 to 3300
    1.25 x 0.48 x0.40


    6000 to 18000
    1.2
    1.7:1
    60
    0 to 5000
    1.50 x 0.80 x 0.50


    6400 to 18000
    1.2
    1.7:1
    55
    0 to 5850
    1.50 x 0.80 x 0.50


    7000 to 18000
    1.5
    2.0:1
    50
    0 to 5850
    1.54 x 0.77 x0.50


    8000 to 18000
    2.0
    2.0:1
    60
    0 to 7200
    1.24 x 0.73 x0.50
  • Read More

    Low Pass filter

    Passband (MHz)
    Loss(dB)
    VSWR
    Rejection
    (dB)
    Stop band
    (MHz)
    Size (inches)


    0 to 18.0
    3.0
    1.5:1
    50
    19.1 to 100
    3.00 x 1.00 x .75


    0 to 230
    1.0
    1.5:1
    50
    310 to 1000
    1.75 x 0.50 x0.40


    0 to 425
    0.8
    1.5:1
    35
    500 to 3000
    1.50 x 0.38 x0.38


    0 to 800
    2.0
    1.5:1
    60
    875 to 10000
    2.5 x 0.38 x 0.38


    0 to 1000
    1.0
    1.5:1
    60
    1500 to 5000
    2.25 x 0.38 x0.38


    0 to 4400
    0.5
    1.5:1
    20
    7200 to 18000
    0.75 x 0.50 x0.50


    0 to 6000
    1.0
    2.0:1
    60
    6900 to 18000
    1.50 x 0.70 x0.50


    0 to 8000
    1.0
    1.7:1
    50
    9000 to 18000
    1.48 x 0.70 x0.50


    0 to 4600
    1.5
    2.0:1
    55
    5150 to 16000
    2.00 x 0.99 x0.50


    0 to 18000
    1.2
    1.8:1
    40
    50
    19300 to 19800
    19800 to 20400
    .66 x 0.55 x0.50


    0 to 18000
    1.4
    1.8:1
    40
    50
    19300 to 19800
    19800 to 20400
    .80 x 0.70 x0.70


    0 to 18000
    3.4
    2.0:1
    80
    19300 to 20400
    1.3 x 0.55 x 0.5


    0 to 18000
    3.6
    2.0:1
    80
    19300 to 20400
    1.45 x 0.7 x 0.7
