前置放大器

Sonoma前置放大器

Sonoma前置放大器

廠牌:Sonoma Instruments
型號:310N, 315, 317, 321,330, 352,354

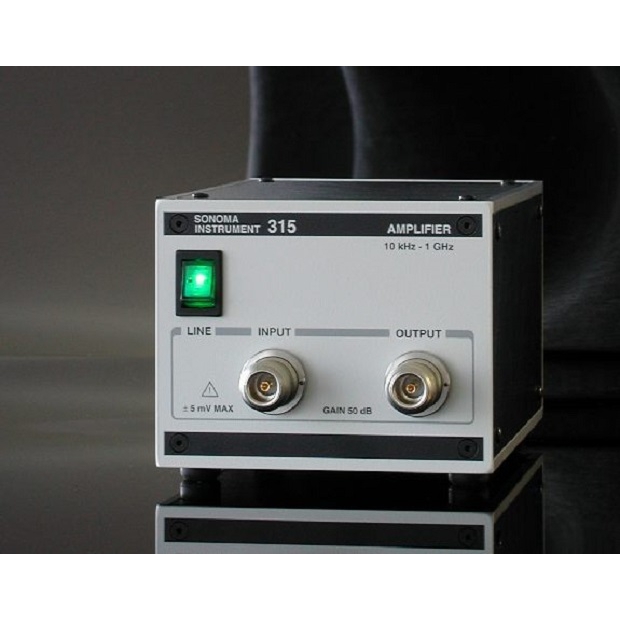

  • sonoma-instrument-315-1.jpg
詳細介紹
SONOMA低雜訊寬頻前置放大器,頻率範圍從9 ( 10 ) kHz 到 3 GHz,適合搭配近場探使用,也可以用於場強測量、場地衰減測量等,提高系統靈敏度。

Model Frequency Range Gain Output Power Remarks
352 10 kHz - 5 GHz 26 dB 10 mW Broadband
354 10 kHz - 3 GHz 19 dB 30 mW Excellent pulse response
317 10 kHz - 2.5 GHz 38 dB 30 mW High gain
330 10 kHz - 2.5 GHz 20 dB 10 mW Not for new applications, supported
321 9 kHz - 2 GHz 28 dB 100 mW Higher output power and dynamic range
310 9 kHz - 1 GHz 32 dB 10 mW Low noise, replaces HP/Agilent/Keysight 11909A
315 10 kHz - 1 GHz 51 dB 30 mW Very high gain, low noise
