廠牌:Langer
型號:E1
  • 2013.09.05.E1_K_0048_wPZ E1.jpg
  • 2016.11.22 E1 Anwendung BS 04 DB-S21 en_wGM E1.jpg
詳細介紹

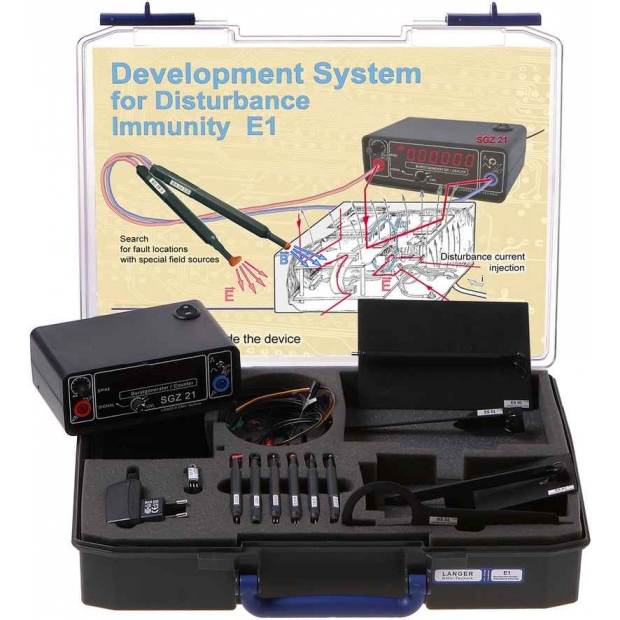

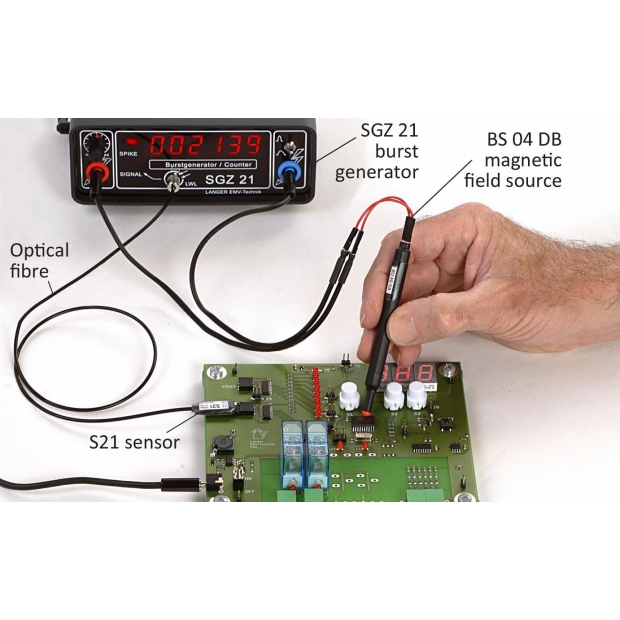

The E1 is a set of EMC tools used for EMI suppression in printed circuit boards during the development phase. The developer can use the E1 set to quickly identify the causes of burst and ESD interference. This allows the developer to design suitable measures to solve the causes of the interference. It can also be used to test the effectiveness of the measures taken. The E1 test set-up is small and fits easily on a developer's desk. The E1 set user manual describes EMC mechanisms and provides detailed descriptions of basic measuring strategies for interference suppression in printed circuit boards. The E1 set includes a generator to generate burst and ESD disturbances.

Technical parameters
S21 optical sensor
Transmission range DC...10 Mbps
Optical fibre connector 2.2 mm Ø
Supply voltage (3-5) V
Current input 10 mA
SGZ 21 burst Generator
Pulse parameter
Rise time ca. 2 ns
Tail time ca. 10 ns
Peak values ca. 0...1500 V
Optical input
Optical fiber 2.2 mm
Max. frequency 5 MHz
Min. pulse width 100 ns
Supply voltage 12 V / 200 mA
Sizes (L x W x H) (154 x 100 x 62) mm
