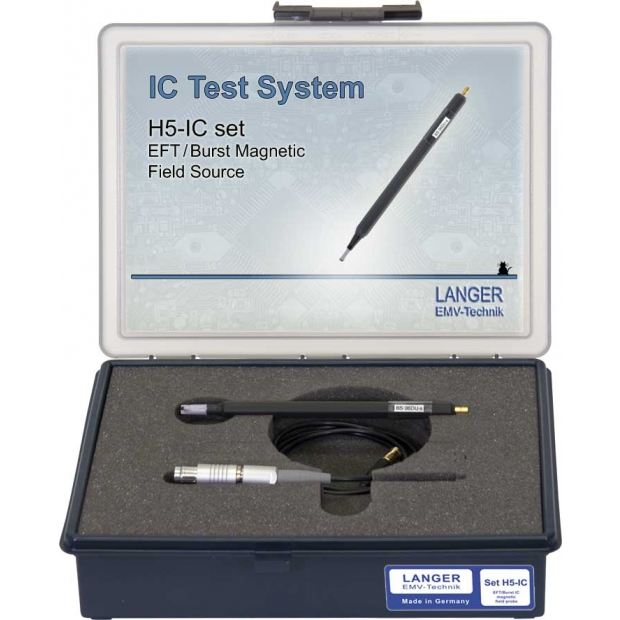

H5-IC SET

H5-IC SET

EFT/Burst Magnetic Field Source
undefined
/
undefined
/
  • 2020.04.24 Koffer H5-IC set wen.jpg
  • 2020.04.07-04 BS 06DB-s Wirkungsweise en.jpg
詳細介紹

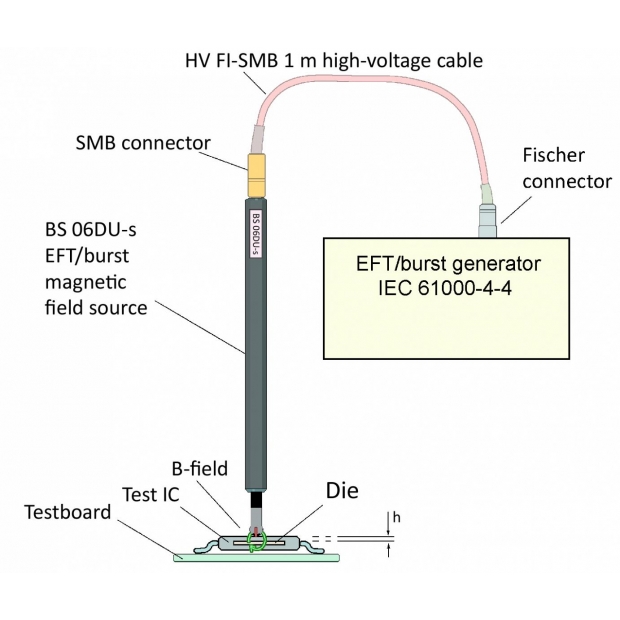

The BS 06DU-s magnetic field source is used to generate magnetic EFT/burst fields. An EFT/burst generator (IEC 61000-4-4) supplies the field source with an EFT/burst current via an RF cable. The field source generates high magnetic fields (approx. 150 mT) in very small spaces. It is thus ideal for coupling the field into ICs. The field source can be inserted into a scanner or can be guided by hand. It has a SMB output. The connection cable for the magnetic field source is available with an SHV connector (HV SHV-SMB 1m) or with a Fischer connector (HV FI-SMB 1m; a S103A023 Fischer connector). Please specify which cable/connector when placing your order.
Technical parameters
BS 06DU-s EFT/Burst Magnetic Field Source
Probe head dimensions (5 x 6) mm
Frequency range 0...560 MHz
Max. generated magnetic flux density 150 mT
Waveform of the injected test pulse IEC 61000-4-4
Connector - output SMB, female, jack
Sizes (L x W x H) (140 x 8 x 8) mm
Weight 15 g
