PCB 抗擾度量測修改配件 Immunity

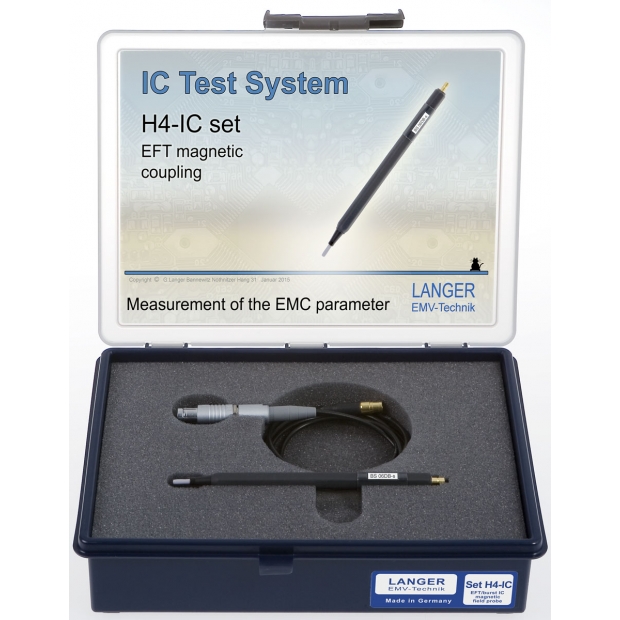

H4-IC set

H4-IC set

EFT/Burst Magnetic Field Source
  • 2019.10.07. H4-IC set FI Koffer 999_3 wGM.jpg
  • H4.jpg
詳細介紹

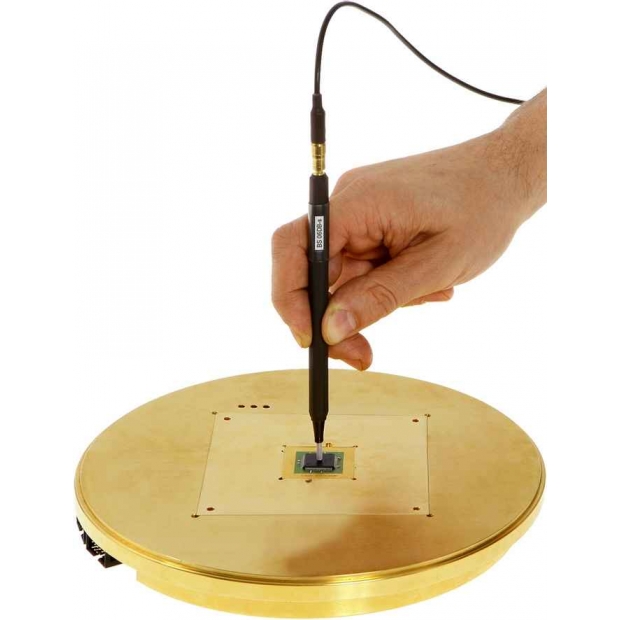

The BS 06DB-s magnetic field source is used to generate magnetic EFT/burst fields. An EFT/burst generator (IEC 61000-4-4) supplies the field source with an EFT/burst current via an RF cable. The field source generates high magnetic fields (approx. 200 mT) in very small spaces (2.54 mm²). It is thus ideal for coupling the field into ICs. The field source can be inserted into a scanner or can be guided by hand. It has a SMB output. The connection cable for the magnetic field source is available with an SHV connector (HV SHV-SMB 1m) or with a Fischer connector (HV FI-SMB 1m; a S103A023 Fischer connector). Please specify which cable/connector when placing your order.

Technical parameters
BS 06DB-s EFT/Burst Magnetic Field Source
Frequency range 0...66 MHz
Resolution 2.54 mm²
Generated magnetic flux density 2.37 mT/A
Probe head dimensions Ø 1.8 mm
Max. generated magnetic flux density 200 mT
Connector - output SMB, female, jack
