PCB 抗擾度量測修改配件 Immunity

H3 set

H3 set

Field Sources
  • 2013.07.13 Koffer-H3_freigestellt_wPZ.jpg
  • 2013.12.13 H A 788-en H3.jpg
詳細介紹

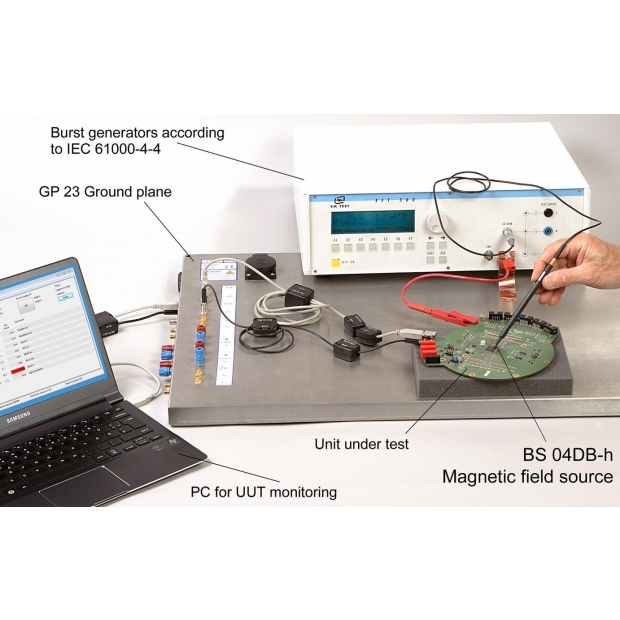

The field sources are used to analyze the immunity of assemblies and devices by coupling pulse fields (ICE 61000-4-4) into the device under test. They must be guided by hand just above the device under test. The weak spot will react to the pulse field and malfunctions will be triggered. An EFT/burst generator powers the field sources via a high voltage cable. The field sources have a SMB-output. The connection cable for the field sources is available with a SHV connector (HV SHV-SMB 1 m) or with a Fischer connector (HV FI-SMB 1 m; Fischer connector S103A023). Please specify when ordering.

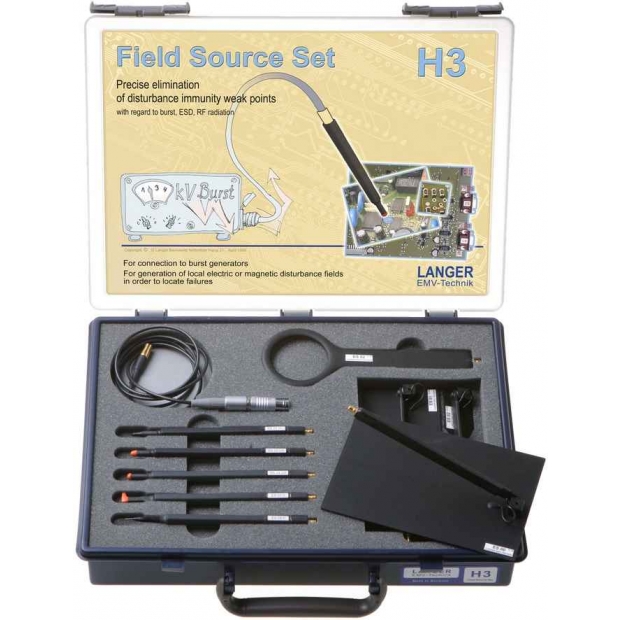

Different types of field source tips are offered for various measuring tasks. The tips allow for localization of the weak spots accurate to the millimeter and for detecting critical connections on the defined disturbing path, such as components, wires, or IC pins.
