近場探棒 Near field probe

HR-E 40-1

HR-E 40-1

近場探棒 Near field probes up to 40GHz

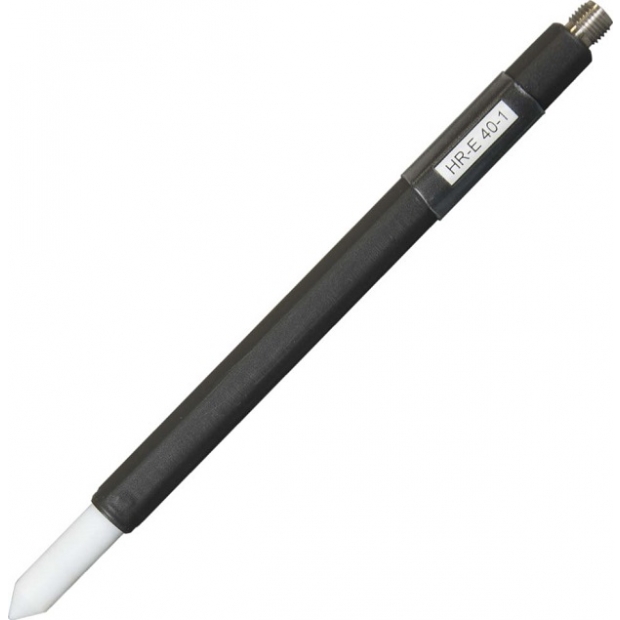

  • 2020.11.09-HR-E-40-1 E-field near-field probe 40 GHz-1.jpg

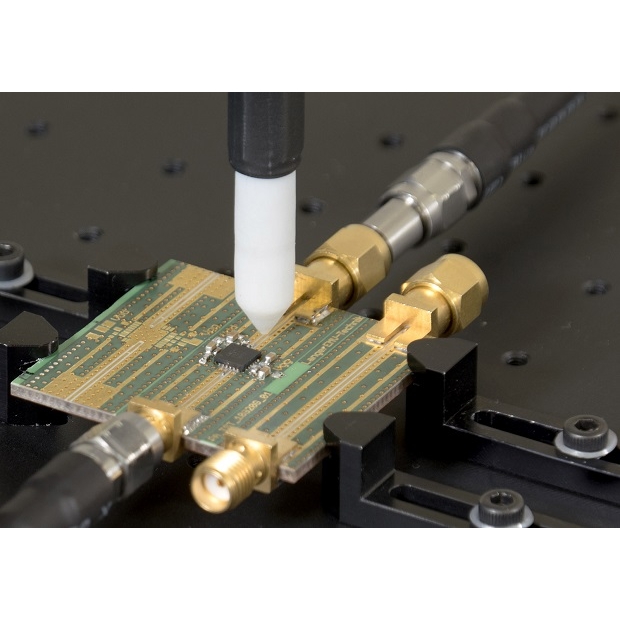

  • HRE40-1 620PX.jpg
詳細介紹

The HR-E 40-1 is a passive near-field probe for measuring electric fields up to 40 GHz.
The measuring tip is decoupled from the cable shield by special damping systems. In addition, the probe contains a current attenuator.

Technical parameters
upper cut-off frequency 40 GHz
lower cut-off frequency depending on measuring device
Resolution 0.2 mm
Inner distance of the measuring electrode to the measuring tip 0.5 mm
Output resistance 50 Ω
Connector - output 2.92 mm (K), female, jack
Weight 15 g
Sizes (L x W x H) (140 x 9 x 9) mm
