近場探棒 Near field probe

LF1

LF1

100kHz up to 50MHz
  • 2018.07.11 LF1 Set H 7874_wGM.jpg

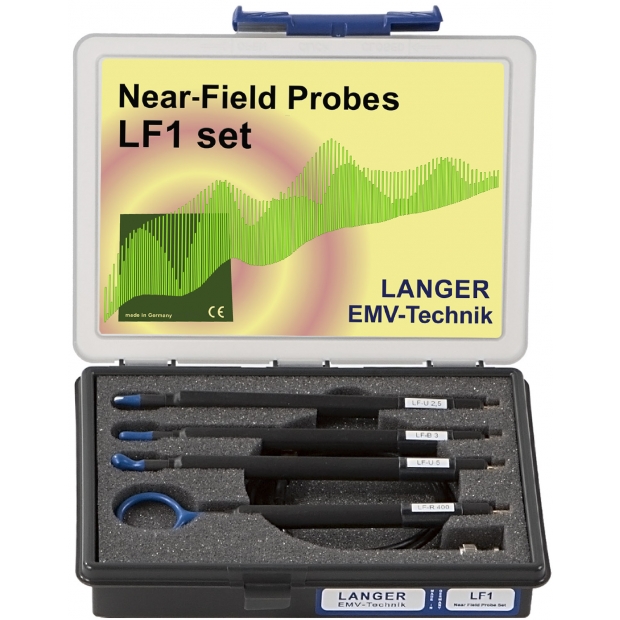

  • PCB-Messtechnik_SA_LF 1 set_Nahfeldsondenset 100 kHz bis 50 MHz_Lieferumfang_wPZ.jpg
詳細介紹

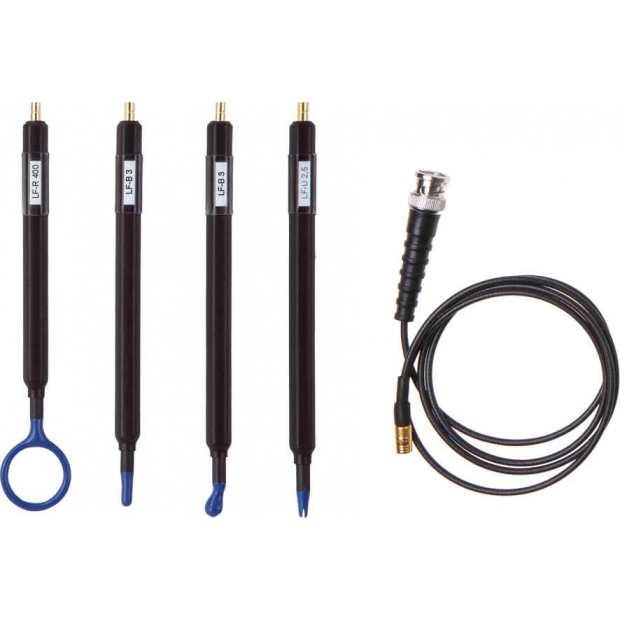

The LF1 near-field probe set consists of four shielded near-field probes for measuring emissions of longwave, medium wave, and shortwave frequencies on electronic devices during the development process. The probe heads of the LF1 set are designed for the incremental detection of electromagnetic interference sources at single pins, larger components, and on assemblies. First, the electromagnetic interference of the assembly is detected by the LF-R 400 probe from up to 10 cm. Probes with higher resolution like the LF-B 3, LF-U 5 and LF-U 2.5 are then used to more precisely detect any source of interference. Our near-field probes are small and handy. They have a current attenuating sheath and, therefore, are electrically shielded. They can be connected to a spectrum analyzer or an oscilloscope with a 50 Ω input. The H-field probes do not have an internal terminating resistance of 50 Ω.

Technical parameters
Frequency range 100 kHz ... 50 MHz
Connector SMB, male, jack
