標準信號源

YRS02

YRS02

品牌:Eurofins York
型號:YRS02

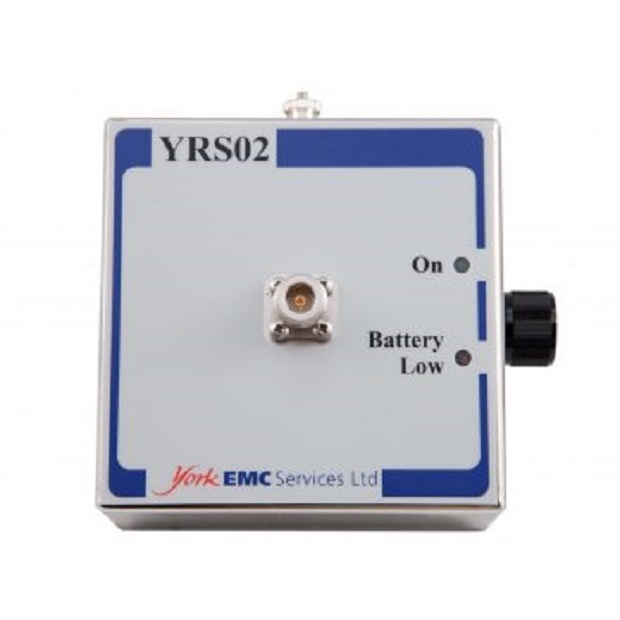

  • YRS02-620px.jpg
詳細介紹

The York Reference Source (YRS02) is a broadband noise and comb source that is capable of producing a continuous noise output from 9 kHz to 1 GHz, or a comb of frequencies within the 5 kHz to 1 GHz range, with step size being selected by the user.

This noise generator enables observation of details over the full spectral range, while the comb generator allows for the reference signal output and noise floor to be viewed simultaneously, and the frequency accuracy of measurement equipment to be checked.

The YRS02 is compact and battery powered, allowing operation as an electrically small source, which minimises the effect of the YRS02 itself when characterising the electromagnetic environment. The YRS02 is housed in a metal enclosure so that it can be mounted in direct contact with a metal ground plane, as may be required by some tests.

The YRS02 is supplied with a 50 Ω N-type output connector for direct connection to conducted measurement systems. An IEC 320 adapter is also available to provide a connection to LISN equipment, as well as an RJ11/RJ14/RJ25/RJ45 adapter for connection to telecoms ISNs, to provide a reference source for conducted emissions setups.

For radiated operation, antennas can be attached to the unit’s output connector. Two monopole antennas, optimised for different frequency bands, are available.

The YRS02 is an ideal source for carrying out checks on open area test sites (OATS) and anechoic chambers.

NOISE MODE

Frequency Range

  • 9 kHz to 1 GHz direct connection into 50 Ω system
  • 30 MHz to 1 GHz radiated using TLM02 and MON03 monopole antennas

Temperature  stability

  • <+/–1 dB 9 kHz to 1 GHz, at an ambient temperature of 15 °C to 30 °C
  • <+/–2.5 dB 9 kHz to 1 GHz, at an ambient temperature of 5 °C to 40 °C

Time Stability

  • <1 dB (typical over a 12 month period)

Operating time

  • 7.5 hours (typical with alkaline batteries)

COMB MODE

Frequency Range

  • 5 kHz to 1 GHz direct connection into 50 Ω system
  • 30 MHz to 1 GHz radiated using TLM02 and MON03 monopole antennas

Comb Signal Step size, Selectable between

  • 10 kHz   (5 kHz, 15 kHz, 25 kHz to 3.005 MHz min.)
  • 100 kHz   (50 kHz, 150 kHz, 250 kHz to 30.05 MHz min.)
  • 1 MHz   (0.5 MHz, 1.5 MHz, 2.5 MHz to 300.5 MHz min.)
  • 5 MHz   (2.5 MHz, 7.5 MHz, 12.5 MHz to 1.0025 GHz min.)

Temperature stability

Amplitude

  • <+/–0.5 dB 5 kHz to 1 GHz, at an ambient temperature of 15 °C to 30 °C
  • <+/–1 dB 5 kHz to 1 GHz, at an ambient temperature of 5 °C to 40 °C

Frequency

  • <+/–0.5 ppm, at an ambient temperature of 5 °C to 40 °C

Time stability

  • <1 dB (typical over 12 month period)
  • <+/–1 ppm (typical over a 12 month period)

Operating Time

  • 8 hours (typical with alkaline batteries)
