電源感測器Power Sensor

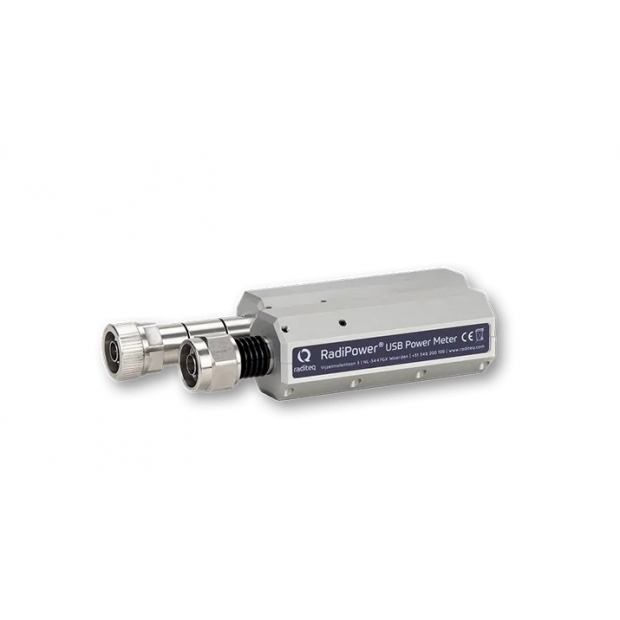

RPR3006W

RPR3006W

廠牌:DARE
型號:RPR3006W
  • Radipower.png
詳細介紹
Model RPR3006W complies with the measurement requirements of the ETSI 300 328 and 301 893 standards for wideband data transmission systems, like IEEE 802.11TM, Bluetooth and ZigbeeTM including the new Wifi 6E (6 GHz). The RPR3006W now covers a measurements range from 10 MHz to 6 (8) GHz.
Extremely Fast
the sampling speed has been increased to maximum 5 MS/s. At the same time a hardware trigger input/output has been added to allow synchronous power measurements of wideband data transmission devices with multiple inputs/outputs (MIMO).
Accurate
The RPR3006W allows high precision RF power measurements with a high dynamic range of 60 dB and provides a basic accuracy of ± 0,2 dB
Burst  mode
User can select measurement speed/time to capture the wideband Burst/Pulse signals and calculate the measurement parameters, maximum RMS power, duty cycle, medium utilization and maximum sequence time. This mode is fully compliant with the measurement methods as defined in the ETSI standards for wideband data transmission systems EN 300 328 (2,4 GHz) and EN 301 893 (5 GHz). In burst mode, the RadiPower can store the information of 100.000 bursts and observation time up to 60 seconds. For each burst the average power and timing data is stored in the buffer. The RadiPower uses a sample speed of 1 or 5 MSps in combination with a RMS detector to ensure correct measurements on wideband modulating transceivers.
For MIMO devices with for example six antenna ports, an equal amount of RPR3006W power heads can be daisy-chained using the MMCX connectors enabling synchronised triggering of all six RadiPower meters. RadiMation Freeware captures the samples of each power meter simultaneously and calculates the total combined power according to the ETSI 300 328 standard.
Software support
The RadiPower Wireless is equipped with an USB interface which enables direct connection of the Power sensors to a PC USB port. Together with the RadiPower USB power sensor a RadiMation FREE freeware package is delivered to enable direct control of the power meter settings and display the measurement results on the PC screen. The RadiMation Freeware also enables synchronous triggering of multiple RadiPower Wireless power sensors.
