產品介紹

Passband
(MHz)
Loss(dB)
VSWR
Rejection
(dB)
Stopband
(MHz)
Size
(inches)


100 to 500
1.0
1.5:1
60
0 to 80
1.50 x 0.50×0.40


500 to 2000
1.0
1.5:1
60
0 to 425
1.25 x 0.50 x0.40


1000 to 15000
1.0
2.0:1
60
0 to 100
0.50 x 0.75 x0.50


1000 to 18000
2.5
2.0:1
60
0 to 800
1.25 x 0.48 x0.40


1200 to 18000
2.5
2.0:1
60
0 to 1000
1.25 x 0.48 x0.40


1500 to 18000
1.5
2.0:1
50
0 to 1000
1.25 x 0.48 x0.40


1800 to 13000
1.5
2.0:1
60
0 to 900
1.10 x 0.60 x0.50


2000 to 8000
1.0
1.7:1
60
0 to 1500
1.10 x 0.6 x 0.50


2500 to 18000
1.5
2.0:1
50
0 to 2000
1.25 x 0.48 x0.40


2800 to 18000
2.5
2.0:1
60
0 to 2500
1.25 x 0.48 x0.40


2900 to 18000
2.8
2.0:1
45
0 to 2700
1.25 x 0.48 x0.40


3000 to 18000
2.5
2.0:1
50
0 to 2700
1.20 x 0.50 x0.50


4000 to 18000
1.5
2.0:1
50
0 to 3300
1.25 x 0.48 x0.40


6000 to 18000
1.2
1.7:1
60
0 to 5000
1.50 x 0.80 x 0.50


6400 to 18000
1.2
1.7:1
55
0 to 5850
1.50 x 0.80 x 0.50


7000 to 18000
1.5
2.0:1
50
0 to 5850
1.54 x 0.77 x0.50


8000 to 18000
2.0
2.0:1
60
0 to 7200
1.24 x 0.73 x0.50

Passband (MHz)
Loss(dB)
VSWR
Rejection
(dB)
Stop band
(MHz)
Size (inches)


0 to 18.0
3.0
1.5:1
50
19.1 to 100
3.00 x 1.00 x .75


0 to 230
1.0
1.5:1
50
310 to 1000
1.75 x 0.50 x0.40


0 to 425
0.8
1.5:1
35
500 to 3000
1.50 x 0.38 x0.38


0 to 800
2.0
1.5:1
60
875 to 10000
2.5 x 0.38 x 0.38


0 to 1000
1.0
1.5:1
60
1500 to 5000
2.25 x 0.38 x0.38


0 to 4400
0.5
1.5:1
20
7200 to 18000
0.75 x 0.50 x0.50


0 to 6000
1.0
2.0:1
60
6900 to 18000
1.50 x 0.70 x0.50


0 to 8000
1.0
1.7:1
50
9000 to 18000
1.48 x 0.70 x0.50


0 to 4600
1.5
2.0:1
55
5150 to 16000
2.00 x 0.99 x0.50


0 to 18000
1.2
1.8:1
40
50
19300 to 19800
19800 to 20400
.66 x 0.55 x0.50


0 to 18000
1.4
1.8:1
40
50
19300 to 19800
19800 to 20400
.80 x 0.70 x0.70


0 to 18000
3.4
2.0:1
80
19300 to 20400
1.3 x 0.55 x 0.5


0 to 18000
3.6
2.0:1
80
19300 to 20400
1.45 x 0.7 x 0.7

廠牌：Schwarzbeck
型號：SBA9112 ; SBA9113; SBA9119

廠牌：Seibersdorf
型號：POD16 & POD618

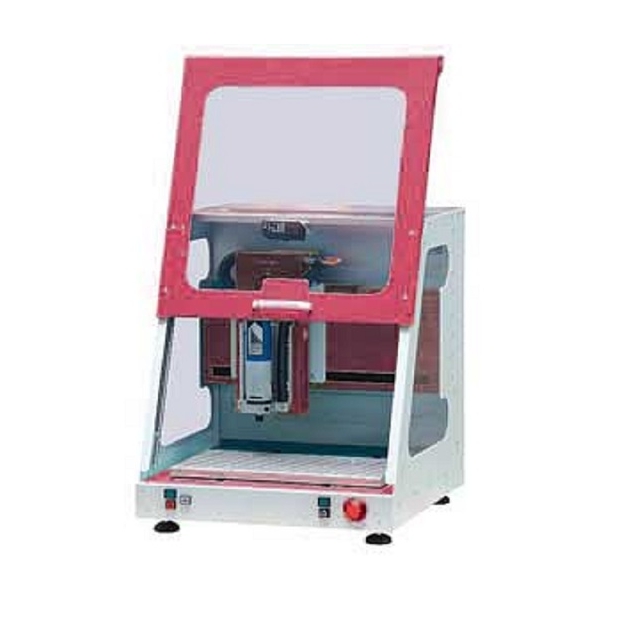

廠牌：Detectus
型號：HRE 2 , HRE 42, HRE 3, HRE 43

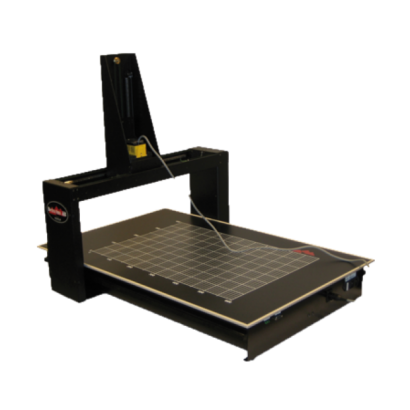

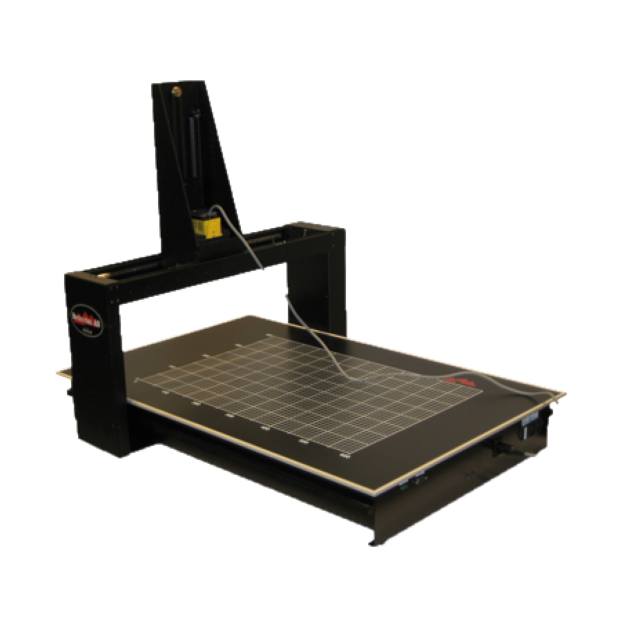

廠牌：Detectus
型號：RSE321 RSE642 RSE644

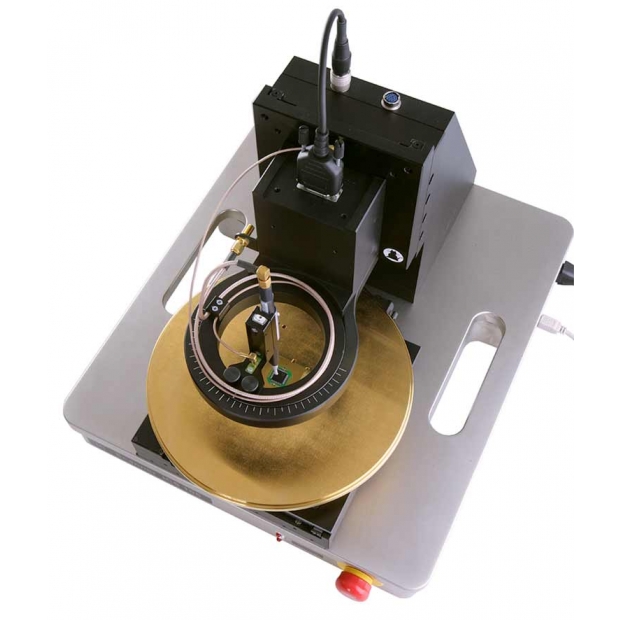

廠牌：Langer
型號：ICS 105

廠牌：DARE
型號：Radisense 10

廠牌：DARE
型號：Radisense 18

廠牌：DARE
型號：RPR3006W

廠牌：Haefely
型號：PEFT8010

廠牌：Haefely
型號：AXOS5 EFT/Burst Immunity Test system
